1.Product introduction

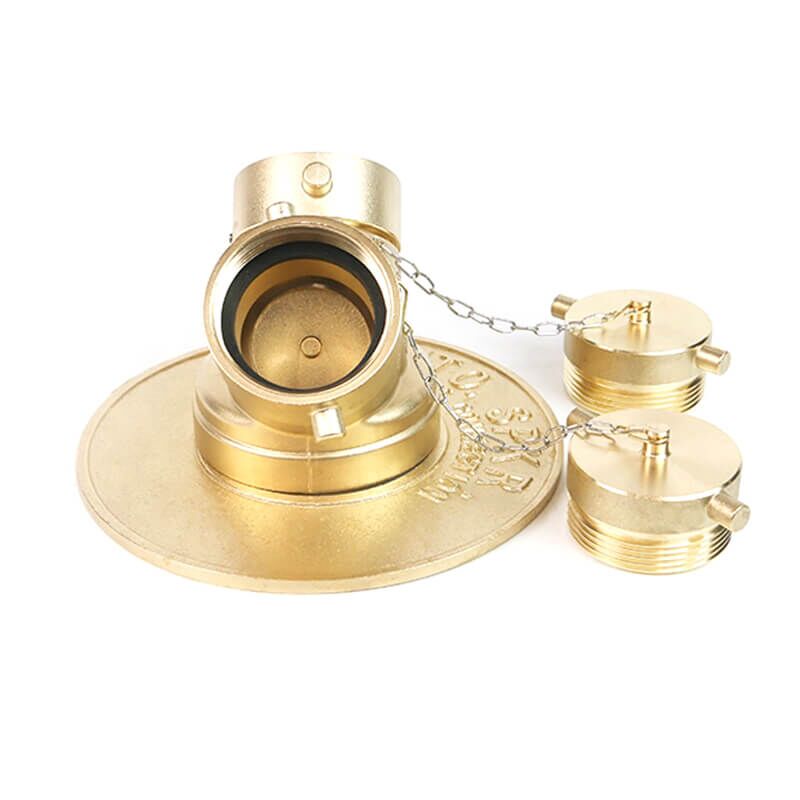

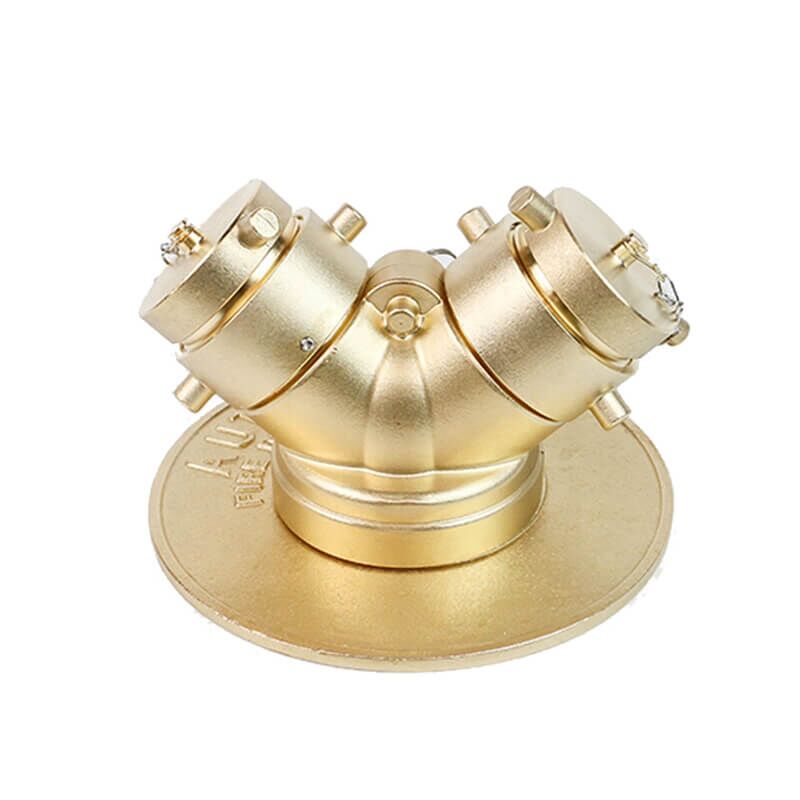

The Straight Pattern Fire Department Connection is Underwriters’ Laboratories listed and Factory Mutual Approved. Manufactured from solid brass* components to increase service life. The single clapper design features brass clapper and brass seats within a cast brass* body.
2.Product Parameter
| Code No. | HY001-030-00 |
| Body material | Copper Alloy |
| Outlet | 1*4”+2*21/2”NST |
| Inlet | 4”NPT female |
| Working pressure | 16 Bar |
| Test pressure | 24 Bar |
3.Products Features
The 21/2” swivels are pin lug design for ease of use and compatibility with local fire service districts. Swivel gaskets are included. Breakable caps or plugs should be installed to protect swivels and prevent debris from being accidently introduced into the water way.
