1.Product introduction

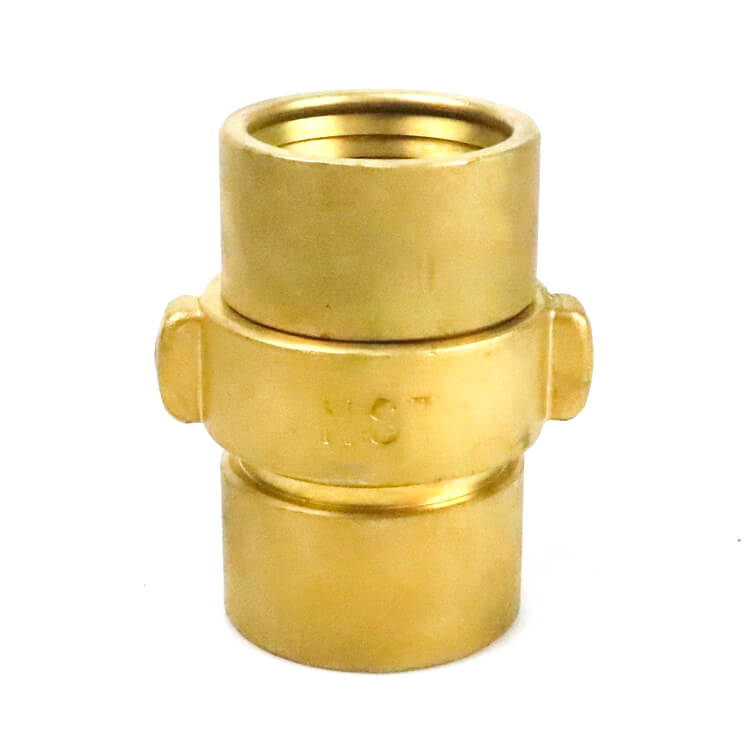

The couplings are a male and female threaded coupling with pin lugs for tightening. They have NST (NH) US-style threads or NPSH straight pipe threads as shown.

Ansi pin type hose coupling is a rigid interlocking end-piece on fire hose; it is used for connecting hose to hydrants or fire engine pumps and other hose appliances (nozzles, valves, manifolds, strainers, etc). Size: 40a (1-1/2). 50a(2). 65a (2-1/2).

2.Product Parameter

Code No.	Inlet	Diameter
CFV003-007B1-00	1.5”	38mm
CFV003-007C1-00	2”	50mm
CFV003-007A1-00	2.5”	65mm

3.Products Features

a. ANSI PIN hose coupling is a rigid interlocking end-piece on fire hose; it is used for connecting hose to hydrants or fire engine pumps and other hose appliances.

b.Connection thread: NST, Outlet Diameter 38mm,50mm,65mm

c.Type: American type

d.Material: Copper alloy/Aluminum Alloy
