DN65 pressure reducing landing valve are pressure reducing type designed to provide a range of outlet pressure (5 bar -8 bar). The Landing valves are classified under high pressure and are suitable for use at nominal inlet pressure up to 20 bar. High quality with most favourable price.

DN65 pressure reducing landing valve are suitable for installation on wet risers in buildings for fire fighting purposes, permanently charged with water from a pressurised supply.

Valve type:Oblique flanged inlet

Pressure Rating:HP or LP

Nominal Size:DN65

Test pressure:valve seat test at 22bar,body test at 30bar

Flange drilling:BS4504

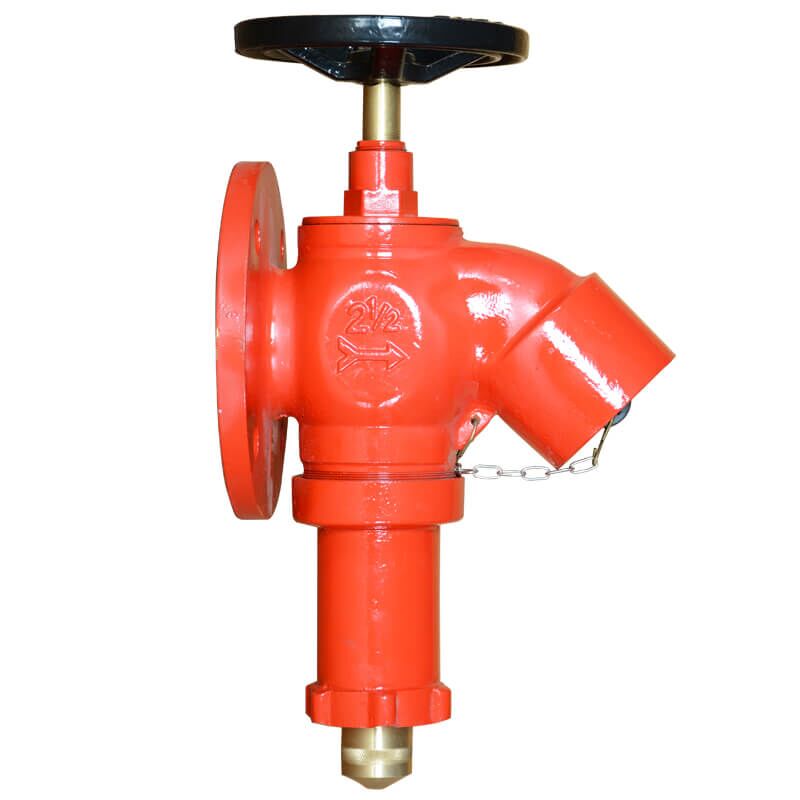

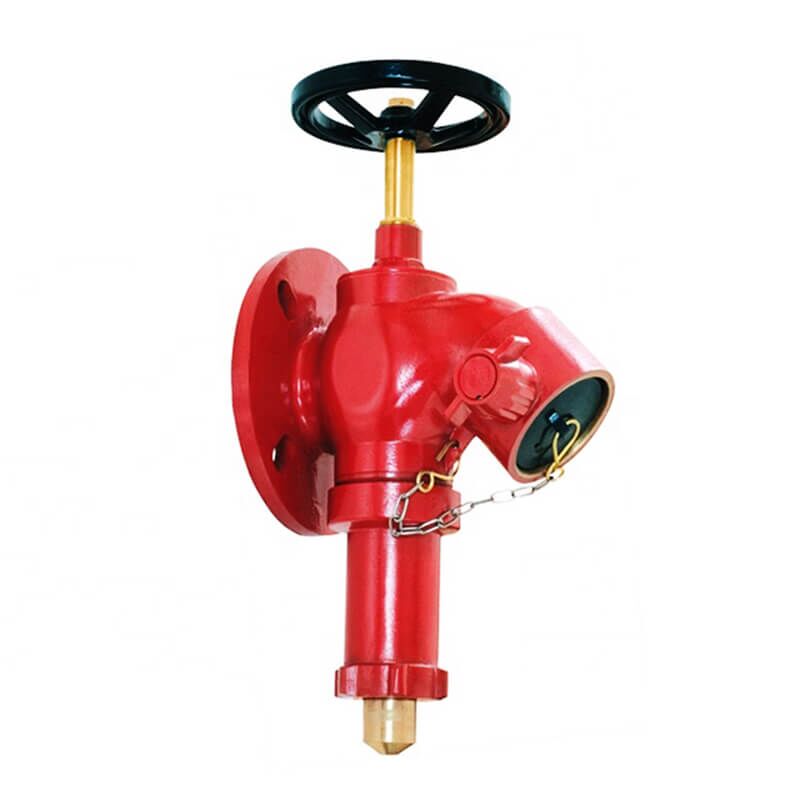

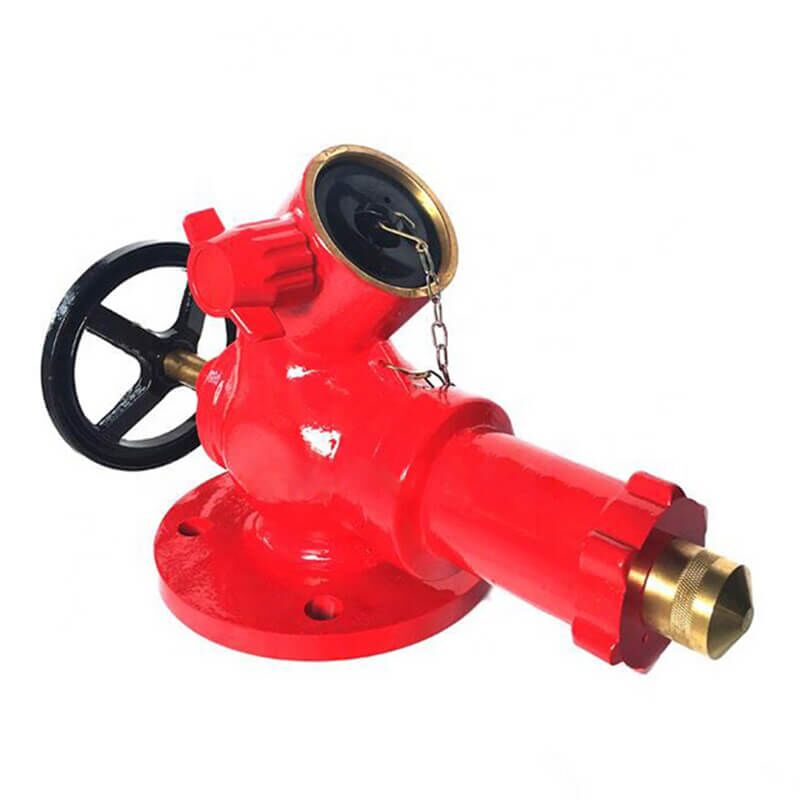

DN65 pressure reducing landing valve

Code No.	XF001-001-00
Body Material	Copper Alloy
Inlet	2.5”BS4504
Outlet	2.5”BS 336 Female coupling with plastic cap & chain
Pressure Rating	Low Pressure Valve
Test pressure	Valve Seat Test at 16.5 Bar • Body Test at 22.5 Bar
Water Flow Rate	8.5 L/S @ 4 Bar Outlet Pressure
