1.Product introduction
Manufacturer of a wide range of products which include right angle pattern flanged valves.

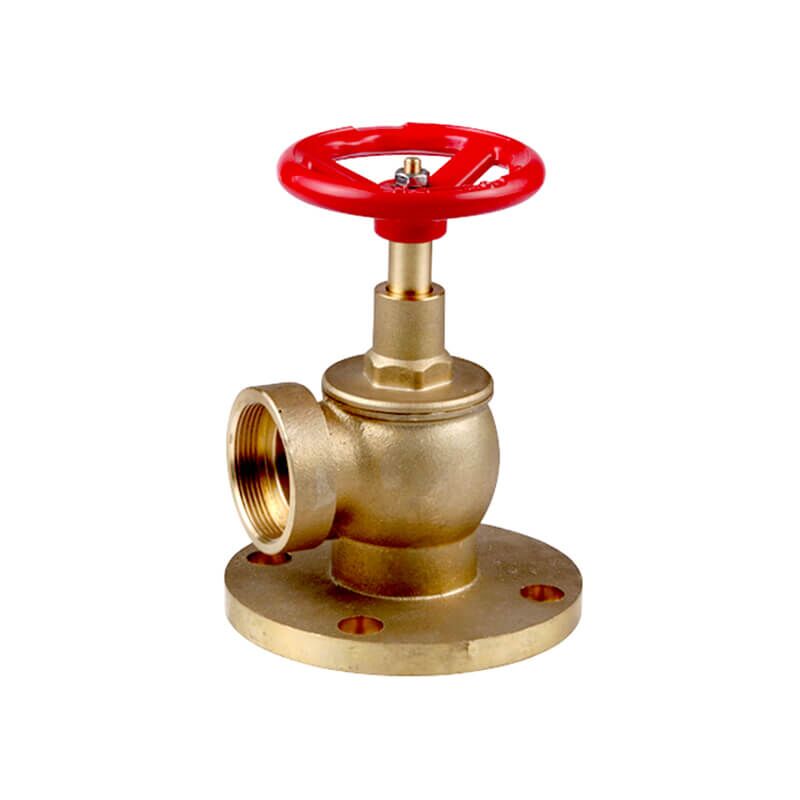

PN16 rated angled pattern fire hydrant valve with bronze body, suitable for both offshore and onshore applications.
2.Product Parameter
| Code No. | Inlet | Outlet |
| CFV001-009B2-00 | (φ50mm)2”ANSI | 2”BSP |
| CFV001-009B3-00 | (φ50mm)2”ANSI | F2”BSP |
| CFV001-009B6-00 | (φ50mm)2”JIS10K | F2”BSP |
| CFV001-009B8-00 | (φ50mm)2”BS4504 | 2”BSP |
| CFV001-048-00 | (φ38mm)1.5”BS4504 | F1.5”BSP |
3.Products Features
Body: copper alloy to BS 1400
Hand wheel: aluminum
Inlet: Flange BS4504, ANSI or JIS10K
Outlet:Male/ female BSP thread
Pressure test: 22. bar
Normal sizes: 1.5 inch, 2 inch and 2.5 inch
