1.Product introduction

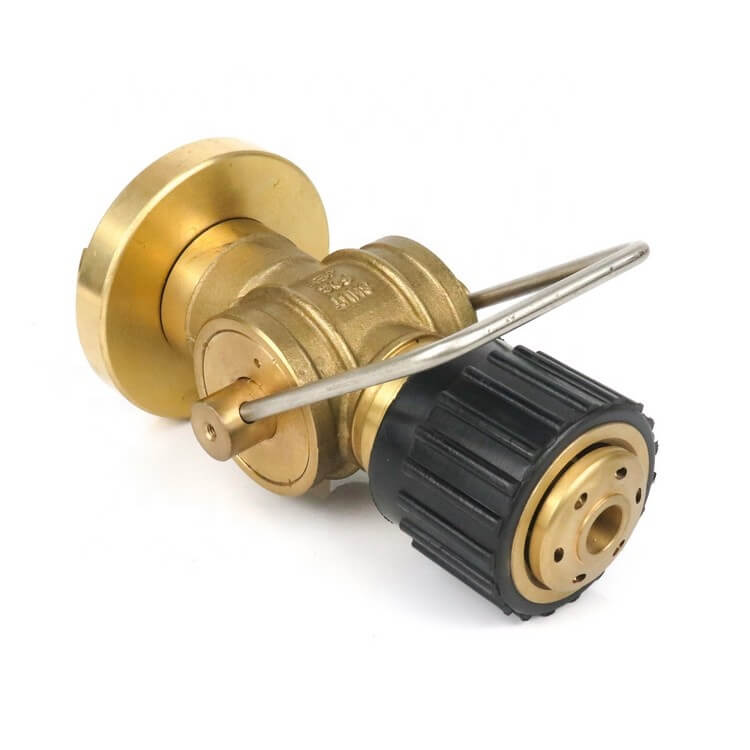

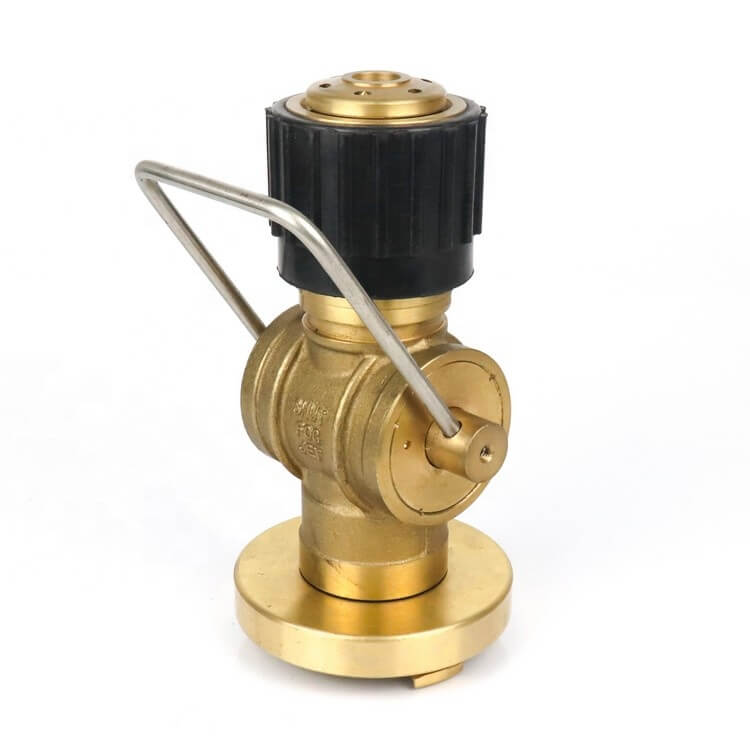

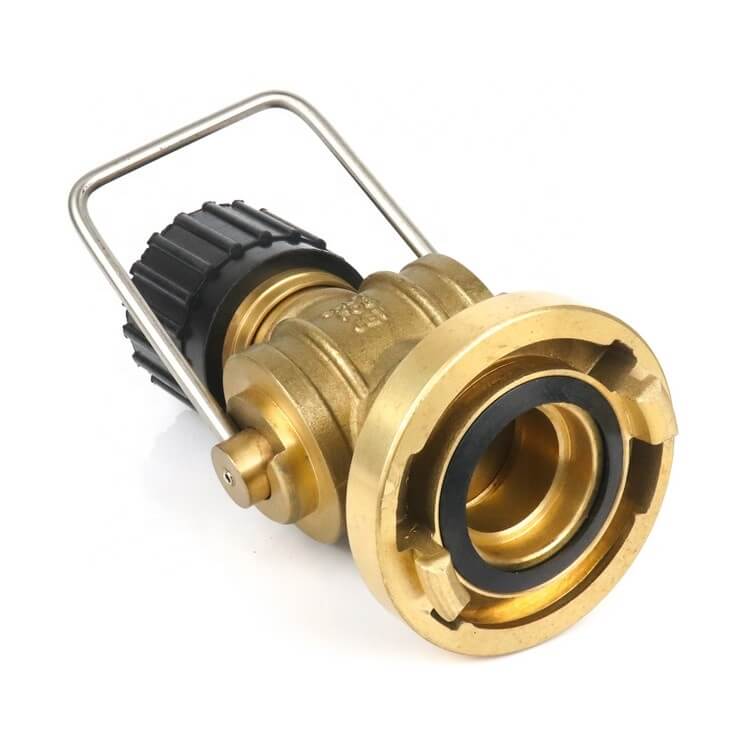

3-position nozzles products shut-off / spray / jet flow spray models.
Nozzle comes with couplings suitable to connect with the hose couplings
2.Product Parameter
| Code No. | Configuration | Finish |
| CFV002-069-00 | 2.5” M55*10 thread with Storz coupling | Rough brass |
| CFV002-069A-00 | 2” M45*12 thread with Storz coupling | Rough brass |
| CFV002-069A1-00 | 1.5” M36*12 thread with Storz coupling | Rough brass |
3.Products Features
a.Size: 40A(1-1/2″), 50A(2″), 60A(2-1/2″)
b.Material: Brass
c.Working Pressure:16bar
d.Test pressure: 24bar
e.Inlet connection type: Nakajima,Storz,USA pin,Machino,John Morris connection available.
